Lowest Running Cost of (Direct Current) DC FFU

  • Model: AL-FFU Series
  • Category: Clean Room Ceiling
  • Applicable: HVAC/Cleanroom/Ventilation..etc
  • Efficieny Class: H13-H14 U15-U17
  • OEM: Customized design is available
  • Clean Class Level: 100-100.000class designable
  • Electrical: 220V/110V 50Hz/60Hz International

  • send_inquiry
Product Details

(Direct Current) DC FFU



1. Energy saving: EC direct current smooth voltage wave line to save energy.

2. Intelligent Control: Use the Lisa remote automatic control system and intelligent control to achieve a perfect match of the mechanical components and electronic control system

semiconductor ,electron , flat-panel display , disc-drive , manufacture and optics , bio-engineering , clean bench, clean room , and any other places.

- See more at: http://www.cleanroomffu.com



FFU full covered.jpg

cca6767815FFU INTRODUCTION.jpg



Application

semiconductor ,electron , flat-panel display , disc-drive , manufacture and optics , bio-engineering , clean bench, clean room , and any other places.



Product information

DC FFU is generator set  with motor inside which is used in the turbulent layer and laminar flow clean room. It has characteristic of continuous use.  The air flow can reach 0.45mm/s ±20%.



Fan feature

1. Energy saving: EC direct current smooth voltage wave line to save energy.

2. Intelligent Control: Use the Lisa remote automatic control system and  intelligent control to achieve a perfect match of the mechanical components and electronic control systems.

3. Easy start and stop: start-up current is only 1/5  AC fan, and can start up many Fans at the same time; good braking performance.

4. Low heat power: DC fans with high energy efficiency, Low heat power , so you can make additional workspace reduce the heat power.





OEM

Customized design is available.





Technical Parameter for fan filter unit:



 MODEL

ALC-FFU615

  ALC-FFU920

ALC-FFU1175

ALC-FFU1225

Cabinet size(WXDXH) mm

615X615X350

920x615x350

1175x575x350

1225X615X350

 Material

Steel plate with painting/galvanized steel/aluminum/stainless steel

 Air flow(m3/h)

600-700

 900-1000

1000-1100

1200-1300

Air velocity (m/s)

         0.3/0.35/0.4/0.45/0.5

Pressure(pa)

    97(10mmAq)

Control system

1: Power on/off   2: Control air speed up/down

HEPA FILTER

Size(mm)

540X840X81

885X580X81

1140x540x81

1190x580x81

Efficiency

         99.995%  0.3um

Pressure

<220pa  0.45m/s

 Power supply

       220V/110V ,50/60HZ

Power (w)

115w

115w

123w

172w

     Noise (Db)

57

57

57

      57

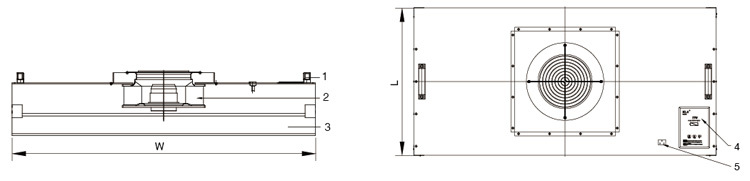

Parameter:
1.Handle
2.Fan
3.HEPA filter
4.Control panel
