Introduction

Product Overview

AL-SAS SERIES AIR SHOWER

ANLAITECH brand AS Series Personal Air Shower is available in three different materials: full Stainless Steel, Stainless Steel Interior, and Steel Plate. With patented air shower design technologies that which ensures a clean seal that prevent contaminant seepage, it can educe large amounts of dust particles brought by staff, and includes 360-degree air jet nozzles that work at more than 25 m/s. with automatic air showering type and clear working indication lights that easy operation.

GMP Cleanroom Stainless Steel Air Shower Interlocking Air System factory

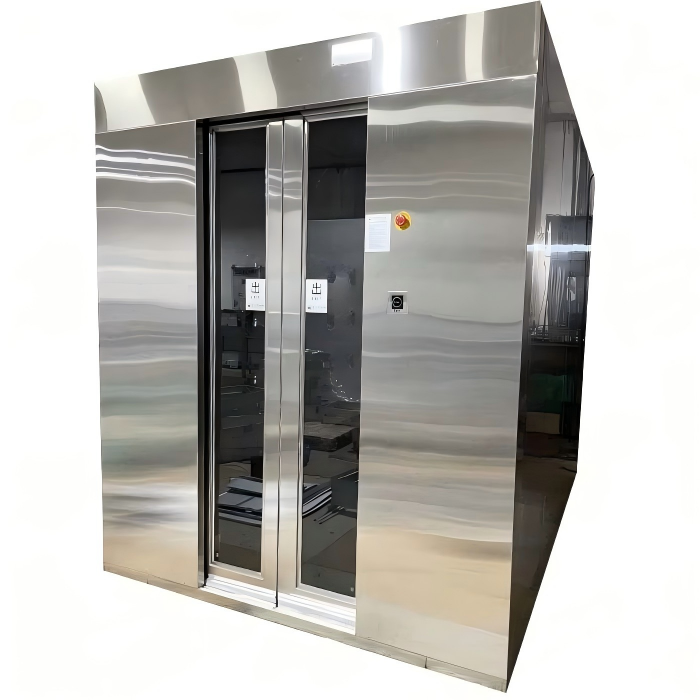

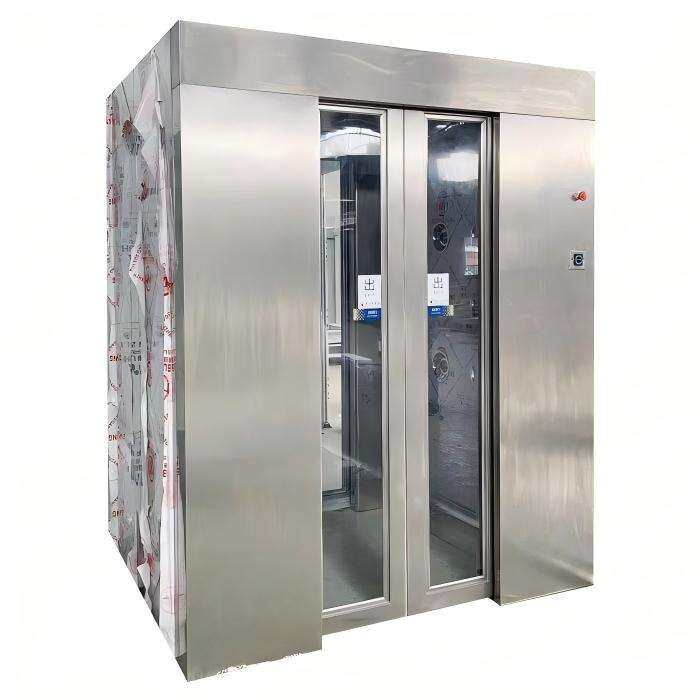

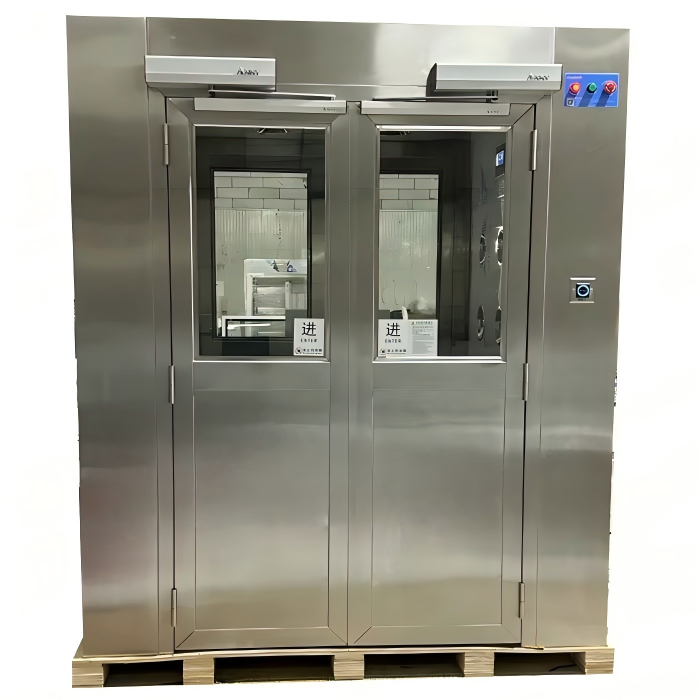

FULL STAINLESS STEEL

GMP Cleanroom Stainless Steel Air Shower Interlocking Air System manufacture

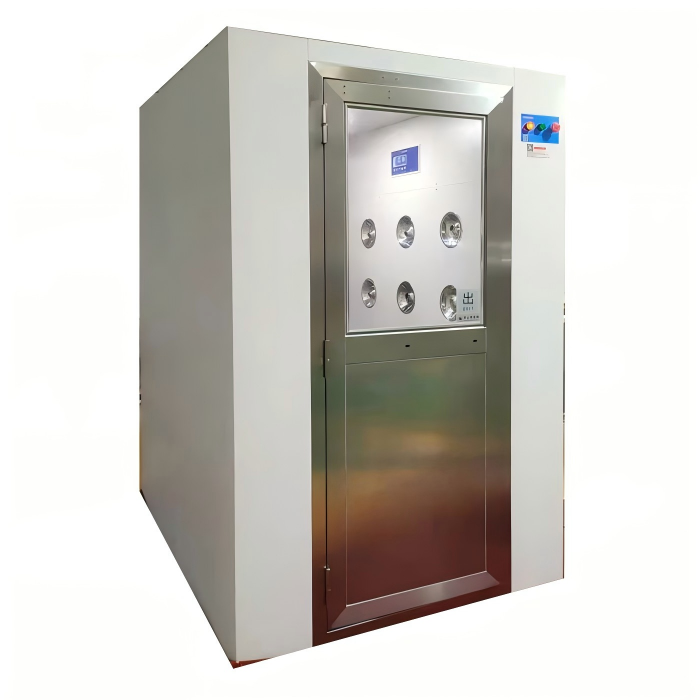

PAINTED OUTSIDE
STAINLESS STEEL INSIDE

GMP Cleanroom Stainless Steel Air Shower Interlocking Air System supplier

FULL PAINTED STEEL

Model	AL-AS-1300/P1	AL-AS-1300/S1	AL-AS-1300/P2	AL-AS-1300/P3
Exterior Size LxWxH (mm)	1300x1000x2180	1300x1500x2180	1300x2000x2180	1300x3000x2180
Interior Size LxWxH (mm)	800x930x1960	800x1430x1960	800x1930x1960	800x2930x1960
Material	T=1.0mm, 1.2mm, 1.5mm SUS304 Stainless Steel /Cold-Rolled Steel Plate				125Ton
Air Shower Time	0-99 seconds adjustable(factory setting 10s)
Jet Nozzles	12	18	24	48
Power Source	380V/50Hz (Also Available in 220V and 110V)
Fan Power (# x Kw)	2*1.1KW	4*1.1KW	2*1.1KW	4*1.1KW
Weight (kg)	300	400	600	800

*Any special size and style please contact with us for best price offer.

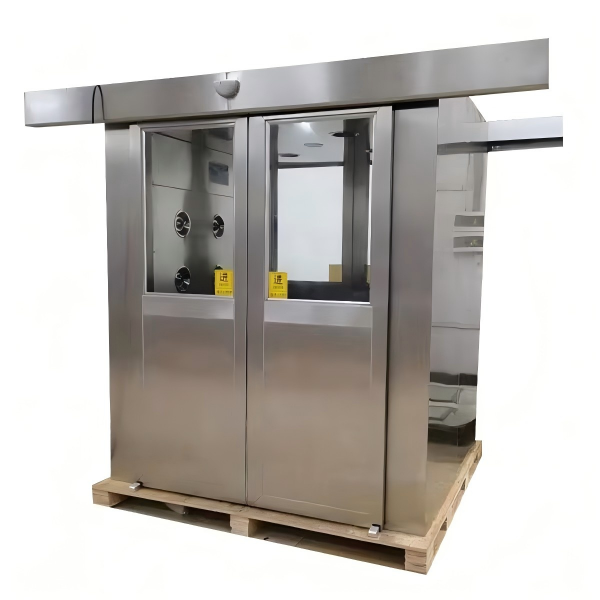

AL-SAS SERIES AIR SHOWER

ANLAITECH AL-SAS MODEL with it special design improves the air shower overall effect:
With built-in automatically sliding system, full screen glass door make the air shower good looking, improve the appearance of your company, give your customer good impressive;
Completely in transportation that easy for customer local installation;
High speed efficiency showering strong take off the dust;
Fully automatically running system, no hand touch avoid any contact to the object make the job more efficiency;
Cheap factory price satisfy you.

GMP Cleanroom Stainless Steel Air Shower Interlocking Air System details

PAINTED STEEL

STAINLESS STEEL

Model	AL-SAS-1800/S1	AL-SAS-1800/S2	AL-SAS-2200/S1	AL-SAS-2200/S2
Exterior Size LxWxH (mm)	1800x1500x2240	1800x3000x2240	2200x1500x2240	2200x3000x2180
Interior Size LxWxH (mm)	800x1300x1960	800x2800x1960	1000x1300x1960	1000x2800x1960
Material	T=1.0mm, 1.2mm, 1.5mm SUS304 Stainless Steel /Cold-Rolled Steel Plate				125Ton
Air Shower Time	0-99 seconds adjustable(factory setting 10s)
Jet Nozzles	24	48	24	48
Power Source	380V/50Hz (Also Available in 220V and 110V)
Fan Power (# x Kw)	2*1.1KW	4*1.1KW	2*1.1KW	4*1.1KW
Weight (kg)	710	1340	910	1680

*Any special size and style please contact with us for best price offer.

AL-GS SERIES CARGO AIR SHOWER

The cargo air shower is a necessary passage for material entering the clean room, with it large inner area design, it cal allowed trolley, pallet to get showering, to control the pollution problems brought by entering and leaving the clean room.
We can offer you with good products and services depend on you customization needs.
The cargo air shower normally with special design, welcome to contact with us for best solution for your showers.

PAINTED STEEL

FULL STAINLESS STEEL

Model	AL-GS-1800/S1	AL-GS-1800/S2	AL-GS-2000/S1	AL-GS-2000/S2
Exterior Size LxWxH (mm)	1800x1500x2180	1800x3000x2180	2000x1500x2180	2000x3000x2180
Interior Size LxWxH (mm)	1300x1400x1980	1300x2900x1980	1500x1400x1980	1500x2900x1980
Material	T=1.0mm, 1.2mm, 1.5mm SUS304 Stainless Steel /Cold-Rolled Steel Plate				125Ton
Air Shower Time	0-99 seconds adjustable(factory setting 10s)
Jet Nozzles	24	48	24	48
Power Source	380V/50Hz (Also Available in 220V and 110V)
Fan Power (# x Kw)	2*1.1KW	4*1.1KW	2*1.1KW	4*1.1KW
Weight (kg)	770	1400	970	1880

*Any special size and style please contact with us for best price offer.

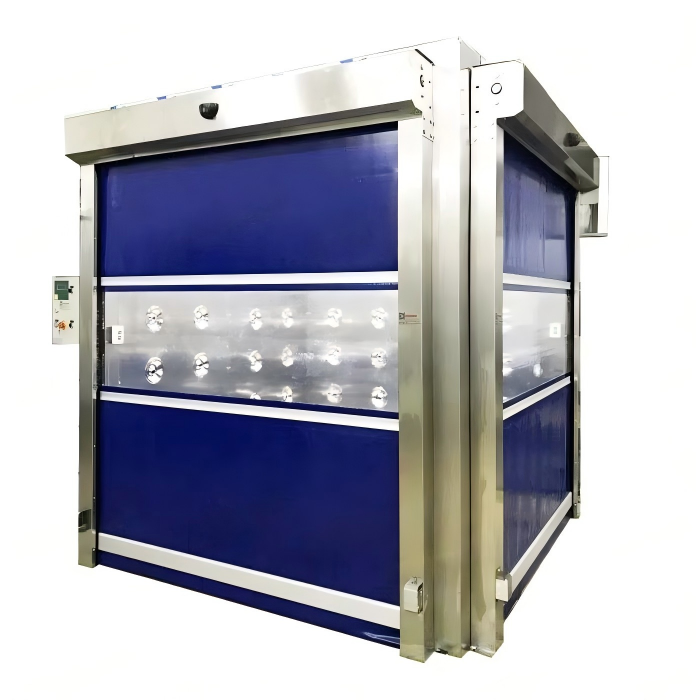

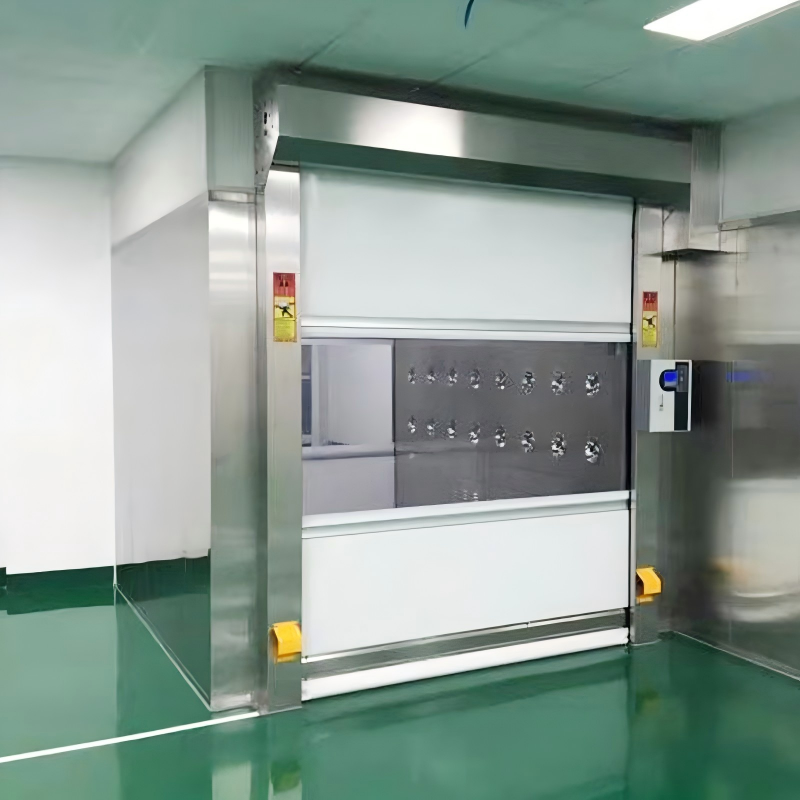

AL-FGS Series Fast Rolling Door Air Shower

The fast rolling door air shower is a necessary passage for cargo entering the clean room.
It can reduce the pollution problems brought by entering and leaving the clean room.
We can offer you with good products and services depend on you customization needs.
Welcome to contact with us for best price and free design.

Model	AL-FGS-2500/S1	AL-FGS-2500/S2	AL-FGS-3000/S1	AL-FGS-3000/S2
Exterior Size LxWxH (mm)	2500x2180x3000	2500x2680x3000	3000x2180x3000	3000x2680x3000
Interior Size LxWxH (mm)	2000x1500x2500	2000x2000x2500	2500x1500x2500	2500x2000x2500
Material	T=1.0mm, 1.2mm, 1.5mm SUS304 Stainless Steel /Cold-Rolled Steel Plate				125Ton
Air Shower Time	0-99 seconds adjustable(factory setting 10s)
Jet Nozzles	24	32	24	32
Power Source	380V/50Hz (Also Available in 220V and 110V)
Fan Power (# x Kw)	2*1.1KW	4*1.1KW	2*1.1KW	4*1.1KW
Weight (kg)	900	1600	1200	2000

*Any special size and style please contact with us for best price offer.

SALES AND SERVICE NETWORK

ANLAITECH Air Shower Main Features

1. Special ultra thin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle, greatly increased the space utilization and blowing tube effect.
2. High quality infrared sensor automatically showering;
2. Time for showering can be adjusted from 0 second to 99 seconds, Adopts single chip microcomputer control, LCD display working status;
3. Imported electronic interlock device, two doors can not opened at same time;
4. With G1 and H13 99.99%@0.3 micron HEPA filter to ensure the purification class;
5. Standard of the modular design, make field assembly faster and more convenient maintenance.
6. But according to user needs and site condition transformation function and form..

Customer Feedback

Company Profile

Certifications

Product packaging

Welcome to contact with us for best price.

FAQ

1. who are we?
We are based in Guangdong, China, more than 10years in clean room business,.There are total about 51-100 people in our company.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
clean room,air shower,clean booth,laminar flow,hepa filter, all parts related to clean room industry.

4. why should you buy from us not from other suppliers?
1).Has a number of industry clean room design experts.

2).More than ten years experience in cleaning equipment manufacturing.
3).Advanced production equipment.

4).Through the ISO certification.

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
