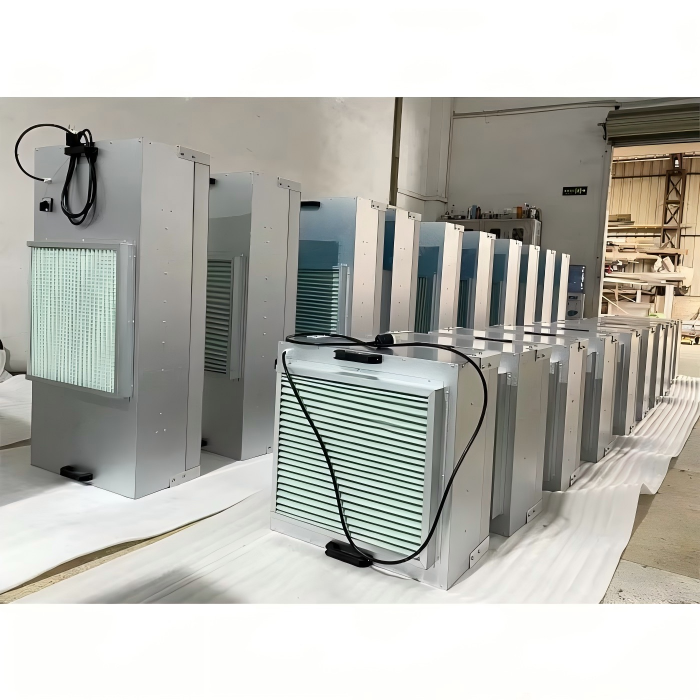

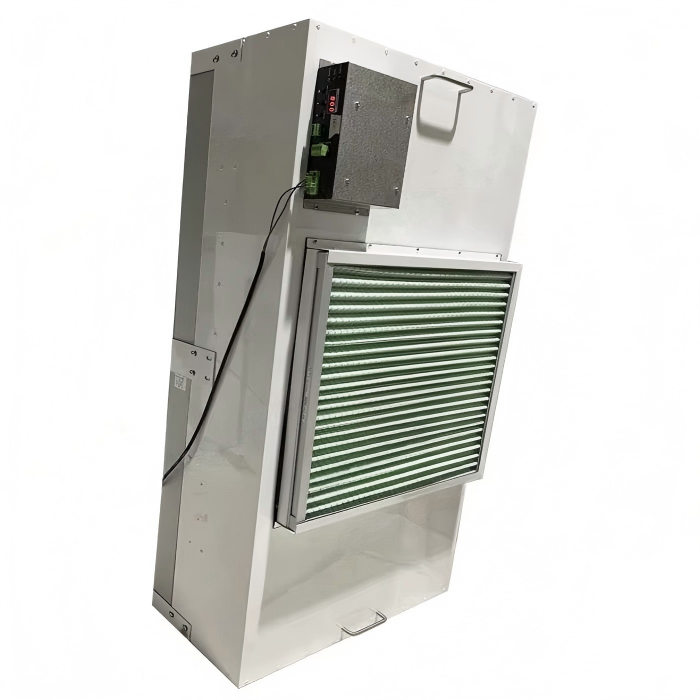

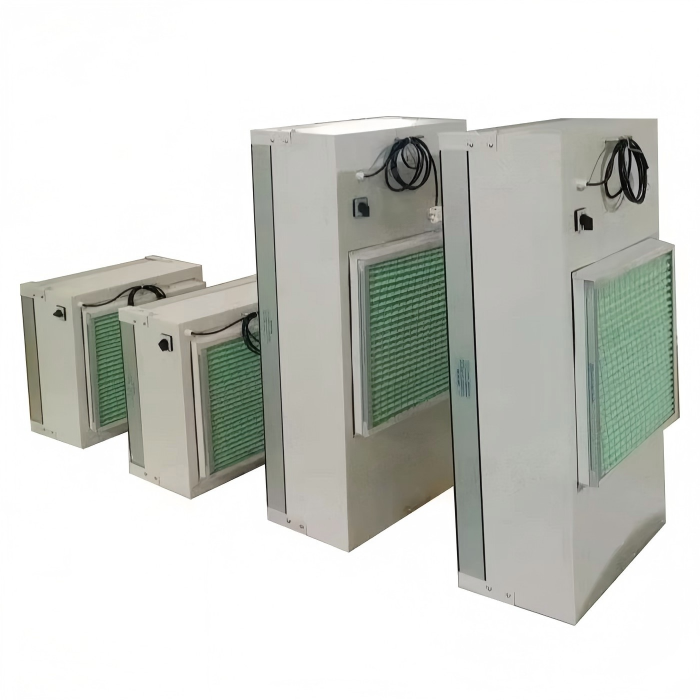

Customizable Flow Hood Laminar Mushroom air Filter Ffu Fan Filter Unit with Hepa

Introducing, the Customizable Flow Hood Laminar Mushroom air Filter Ffu Fan Filter Unit with Hepa by Anlaitech. This innovative product is perfect for maintaining clean and purified air in any environment.



The Flow Hood Laminar Mushroom air Filter features a powerful fan filter unit that effectively removes dust particles, allergens, and other pollutants from the air. With the added Hepa filter, this unit can capture even the smallest particles, ensuring that you are breathing in only the cleanest air possible.



What sets this product apart is its customizable design. With the ability to adjust the flow hood and filter unit to fit your specific needs, you can create the perfect air purification system for your space. Whether you need to filter a small room or a large industrial space, this unit can be tailored to meet your requirements.



The Flow Hood Laminar Mushroom air Filter is easy to install and operate, making it a convenient addition to any space. The fan unit is quiet and energy-efficient, so you can enjoy clean air without any disruption to your daily activities.



Designed by Anlaitech, a trusted brand known for producing high-quality air purification products, this Flow Hood Laminar Mushroom air Filter is built to last. Made with durable materials and advanced technology, this unit is a reliable and long-lasting solution for your air purification needs.



Whether you are looking to improve the air quality in your home, office, or industrial space, the Customizable Flow Hood Laminar Mushroom air Filter Ffu Fan Filter Unit with Hepa by Anlaitech is the perfect choice. With its customizable design, powerful filtration system, and dependable performance, this unit is sure to provide you with clean and purified air for years to come

Clean room HEPA ceiling Modules filters Unit with fan  is type of unit used for filtering laminar air and supplying clean air. FFU can be used stand alone or installed mMdularly. FFU is the core when making clean room equipment for a given space including clean booth, clean bench and clean room assembly

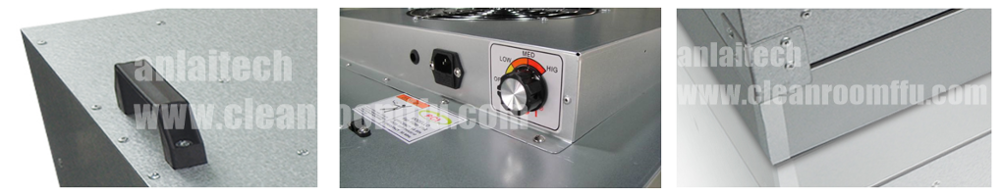

Features:

The master switch inner set with insurance and indicator light

The control mode is flexible, can be three or five air velocity speed adjustment

Abnormal indicator light to understand the operation state of the equipment



Options available:

1. ULPA filter - 99.9995 @0.1μm

2. stainless steel or AL case

3. Super thin design

4. Other requirements

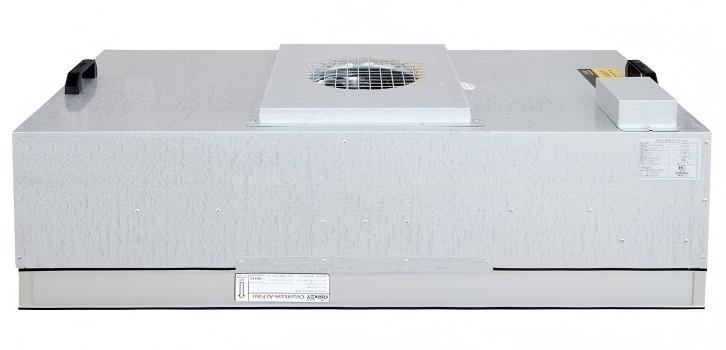

                                                           FFU (HEPA FILTER SPERATED TYPE)







Technical Parameters(HEPA FILTER SPERATED TYPE):

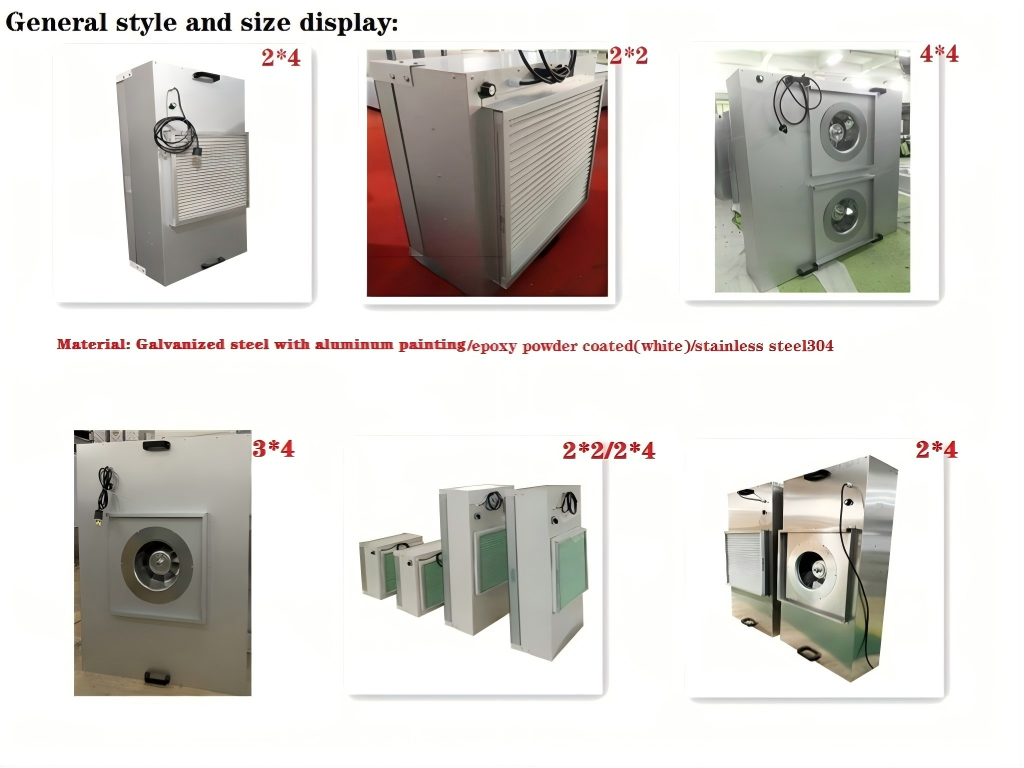

Model		AL-FFU-2*2		AL-FFU-2*4		AL-FFU-3*4		AL-FFU-4*4
Overall size  W * L * H (mm)		575 * 575 * 300		575 * 1175 * 300		875 * 1175 * 300		1175 * 1175 * 380
HEPA filter size   W * L * H (mm)		570 * 570 * 69		570 * 1170 * 69		870 * 1170 * 69		1170 * 1170 * 69
Efficiency		HEPA 0.3μm@≥99.99% OR ULPA 0.12@≥99.9995%
Prefilter - optional		Washable non-woven fabric
Construction		Electro galvanized metal sheet OR stainless steel or high quality aluminum sheet
Air velocity (m/s)		0.35~0.45	0.35~0.45		0.35~0.45		0.35~0.45
Air flow (CMH)		410~513	840~1080		1290~1650		1720~2160
Speed control		3 modes, 5 modes, or induction control
Noise (dB)		48 ~ 50	48 ~ 52		50 ~ 56		52 ~ 58
Consumption	AC	≤ 98	≤ 150		≤ 180		≤200
	DC	≤ 65	≤ 90		≤ 130		≤160
Power		AC single phase 110/220V OR three phase 220/380V 50/60Hz Or DC 220V
Overload protection		Included - terminals or quick coupling are optional
Weight (KG)		28	40		47		55





HEPA FILTER INSIDE TYPE

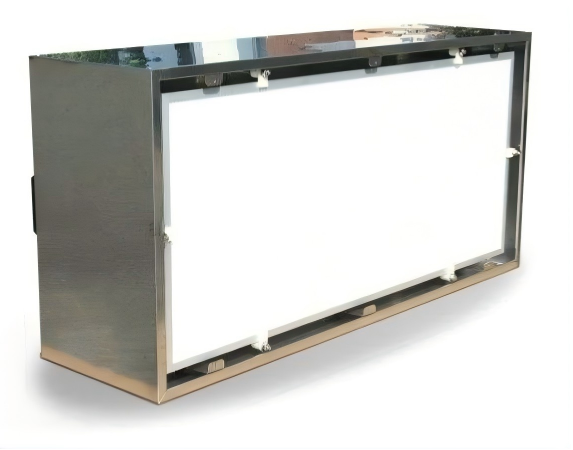

(STAINLESS STEEL)

                  (EPOXY POWDER COATED STEEL MADE)

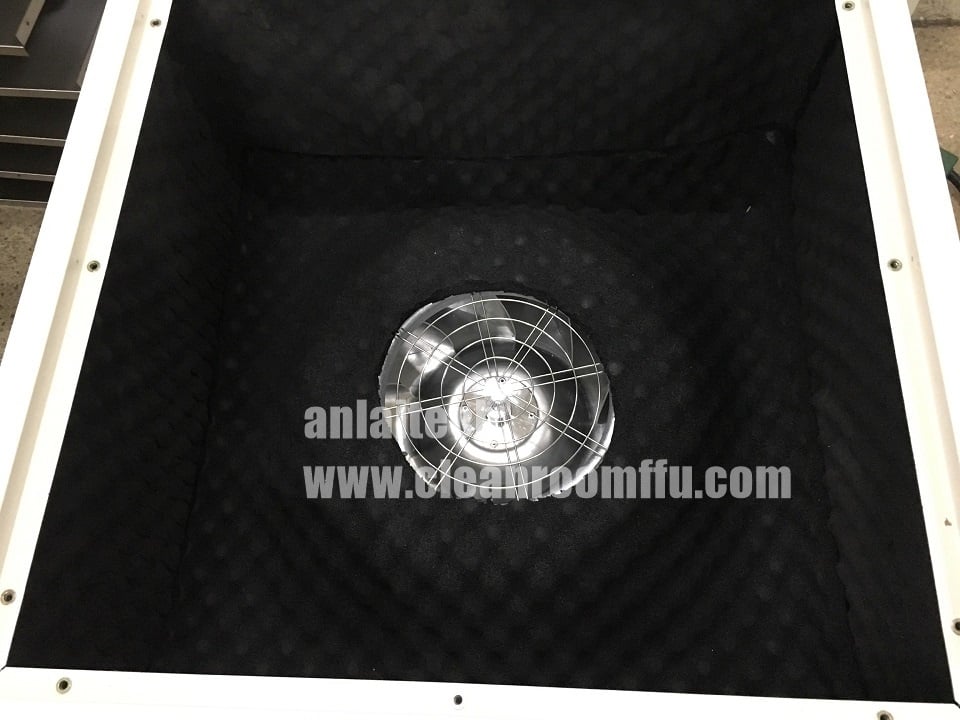

NOISE REDUCE

Technical Parameters(HEPA FILTER INSIDE TYPE):



Model		AL-LFU-2*2		AL-LFU-2*4		AL-LFU-3*4		FFU-4*4
Overall size  W * L * H (mm)		600 * 600 * 450		600* 1200*450		915 * 1200 * 450		1200 * 1200 * 450
HEPA filter size   W * L * H (mm)		440 * 440 * 69		440*1040*69		755 * 1040 * 69		1040 * 1040 * 69
Efficiency		HEPA 0.3μm@≥99.99% OR ULPA 0.12@≥99.9995%
Prefilter - optional		Washable non-woven fabric
Construction		Electro galvanized metal sheet OR stainless steel or high quality aluminum sheet
Air velocity (m/s)		0.35~0.45	0.35~0.45		0.35~0.45		0.35~0.45
Air flow (CMH)		410~513	840~1080		1290~1650		1720~2160
Speed control		3 modes, 5 modes, or induction control
Noise (dB)		48 ~ 50	48 ~ 52		50 ~ 56		52 ~ 58
Consumption	AC	≤ 98	≤ 150		≤ 180		≤200
	DC	≤ 65	≤ 90		≤ 130		≤160
Power		AC single phase 110/220V OR three phase 220/380V 50/60Hz Or DC 220V
Overload protection		Included - terminals or quick coupling are optional
Weight (KG)		28	40		47		55



 CUSTOMIZED VARIOUSE TYPE

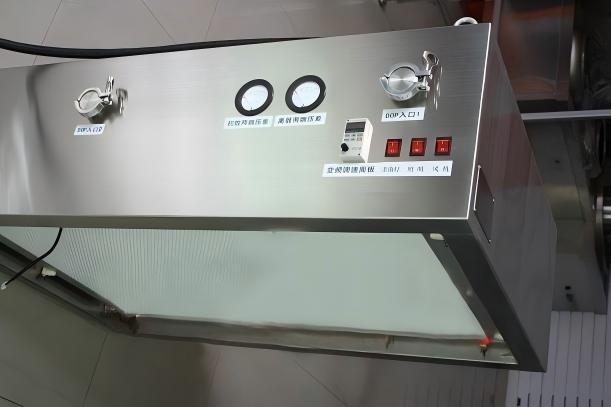

(DOP TESTING FFU)

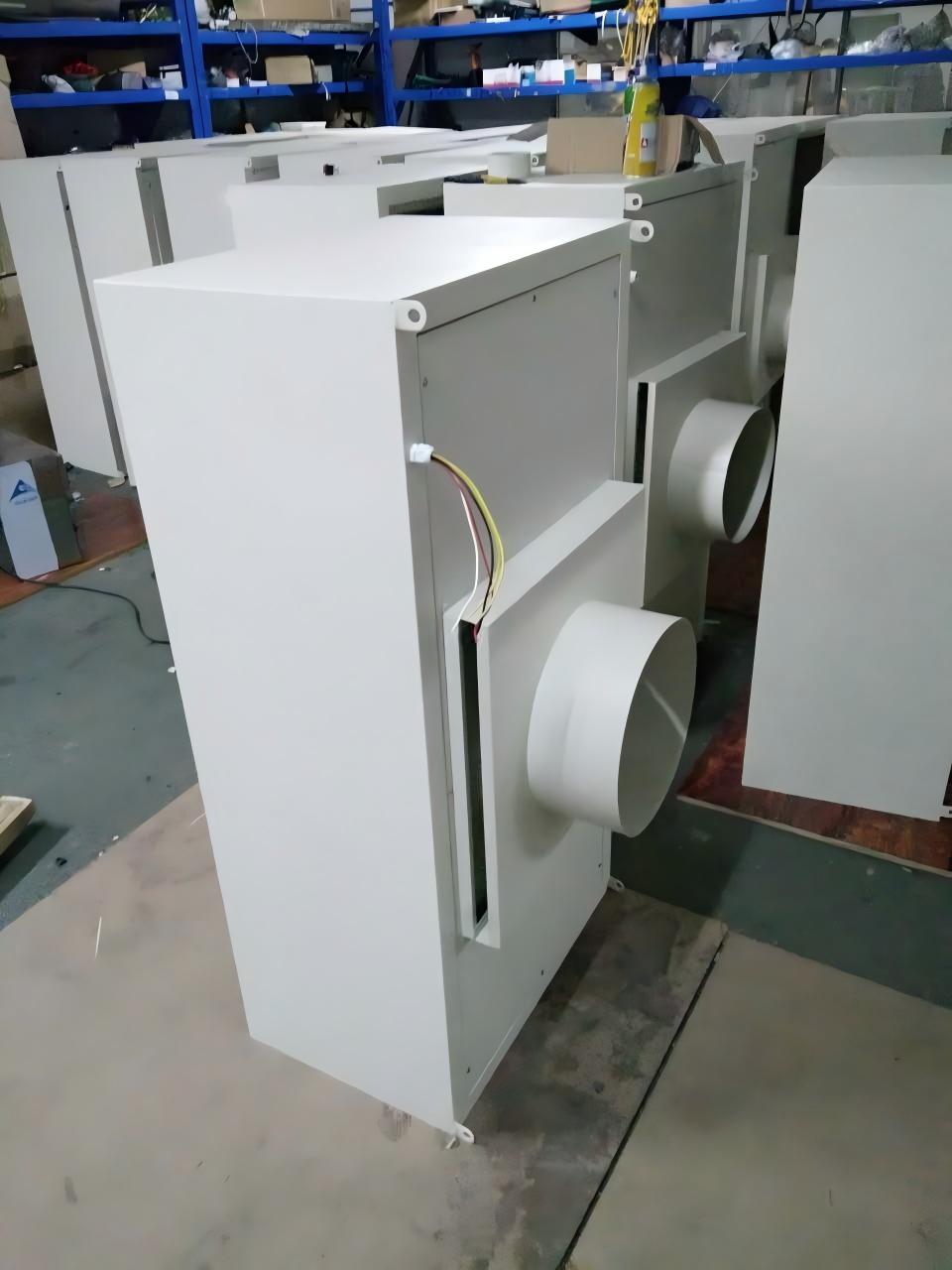

(FFU WITH DUCT)

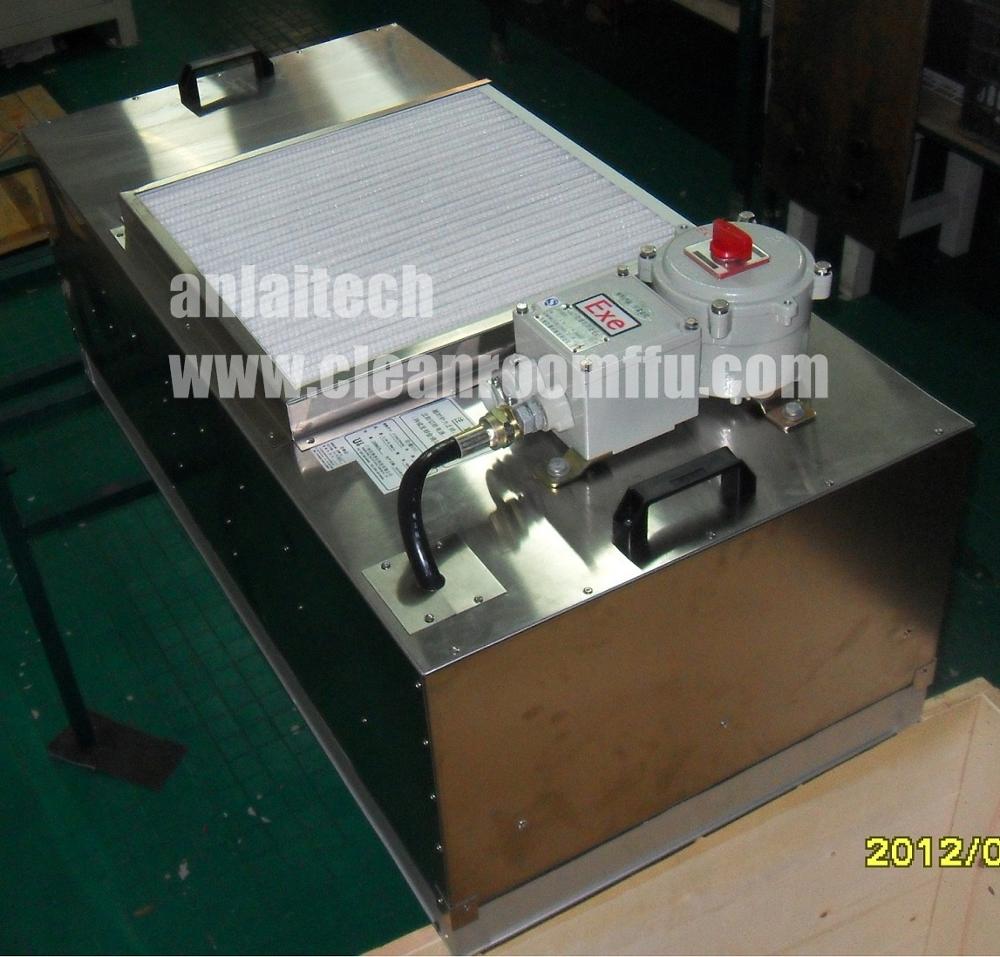

(EXPLOSION-PROOF)







WELCOME TO CONTACT WITH US FOR YOUR FFU SOLUTIONS

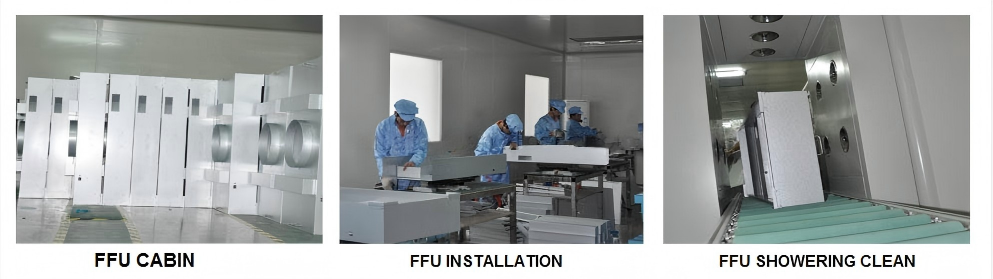

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit

Factory test include:

--appearance testing

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--noise testing



Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories

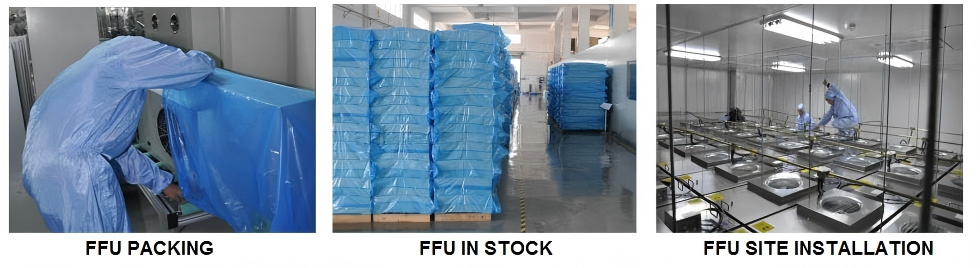

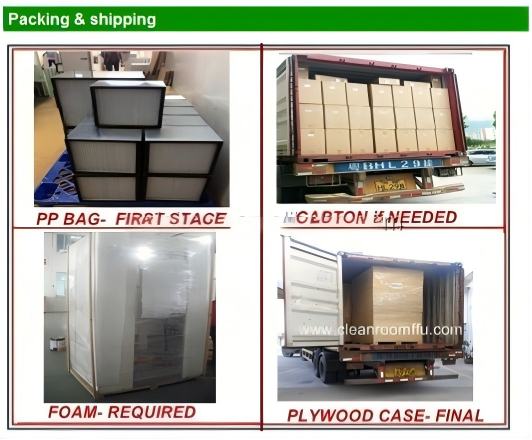

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures

Additional IO/OQ/GMP document is available upon request

Contact our sales representative for specific warranty details or document request
