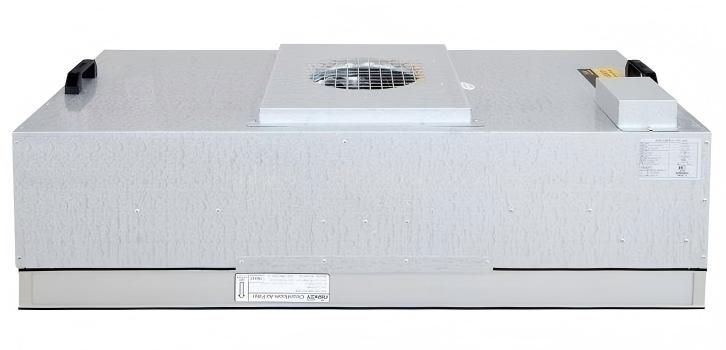

Hot Selling Laminar Flow Hood Hepa FFU ISO Certified Fan Filter Unit Laminar air Flow Hood 2'x4' FFU for Mushroom Clean Room

Introducing, the Hot Selling Laminar Flow Hood Hepa FFU from Anlaitech, the perfect addition to any clean room or mushroom cultivation space. This ISO Certified Fan Filter Unit is designed to provide a clean and controlled environment, ensuring the highest level of protection for your products and crops.



With a size of 2'x4', this Laminar air Flow Hood is compact yet powerful, delivering a steady flow of filtered air to maintain a sterile environment. The Hepa FFU filter ensures that any contaminants or particles are removed from the air, providing a clean and safe workspace for your operations.



This Laminar Flow Hood is easy to install and operate, making it a convenient solution for any clean room or cultivation facility. The fan filter unit is designed for optimal performance, ensuring consistent airflow and filtration to meet the strictest standards of cleanliness.



Whether you are cultivating mushrooms or conducting sensitive experiments, the Anlaitech Laminar Flow Hood is the perfect choice for maintaining a sterile environment. The ISO certification guarantees that this product meets the highest quality standards, providing you with peace of mind and confidence in your operations.



Don't compromise on the cleanliness of your workspace – choose the Anlaitech’s Laminar Flow Hood Hepa FFU for reliable and efficient air filtration. Invest in a product that is designed to protect your products and crops, ensuring their safety and quality.



Order your Laminar Flow Hood today and experience the difference it can make in your clean room or cultivation facility. Trust Anlaitech for all your air filtration needs and enjoy a cleaner, safer workspace for years to come

Clean room HEPA ceiling Modules filters Unit with fan  is type of unit used for filtering laminar air and supplying clean air. FFU can be used stand alone or installed Modularly. FFU is the core when making clean room equipment for a given space including clean booth, clean bench and clean room assembly



Features:

The master switch inner set with insurance and indicator light

The control mode is flexible, can be three or five air velocity speed adjustment

Abnormal indicator light to understand the operation state of the equipment



Options available:

1. ULPA filter - 99.9995 @0.1μm

2. Stainless steel or AL case

3. Super thin design

4. Other requirements

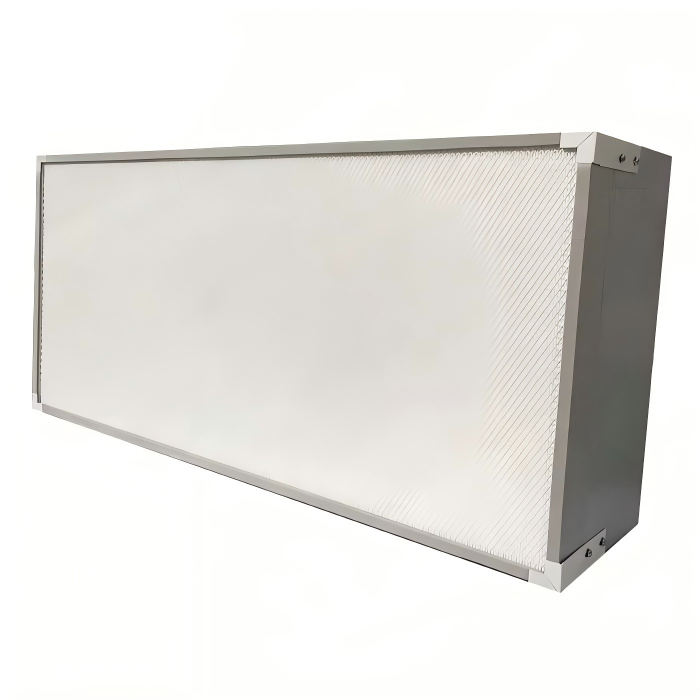

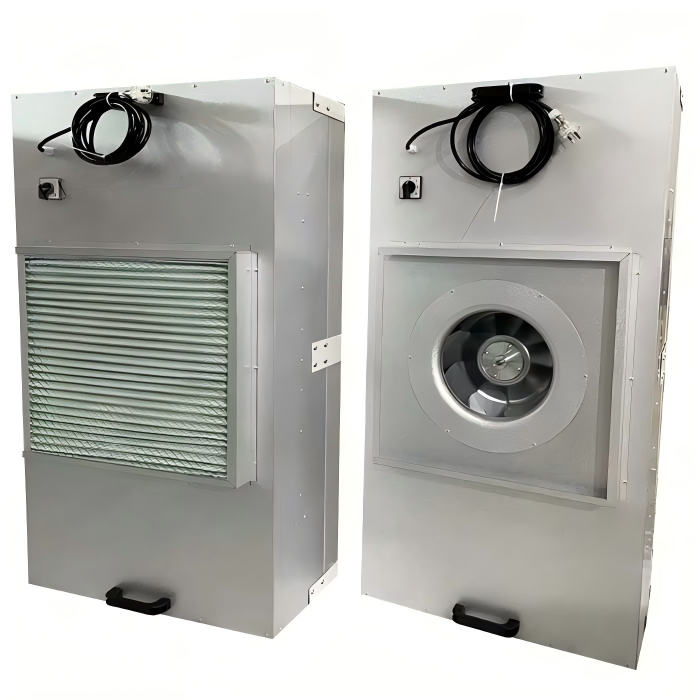

                                                           FFU (HEPA FILTER SPERATED TYPE)







Technical Parameters(HEPA FILTER SPERATED TYPE):

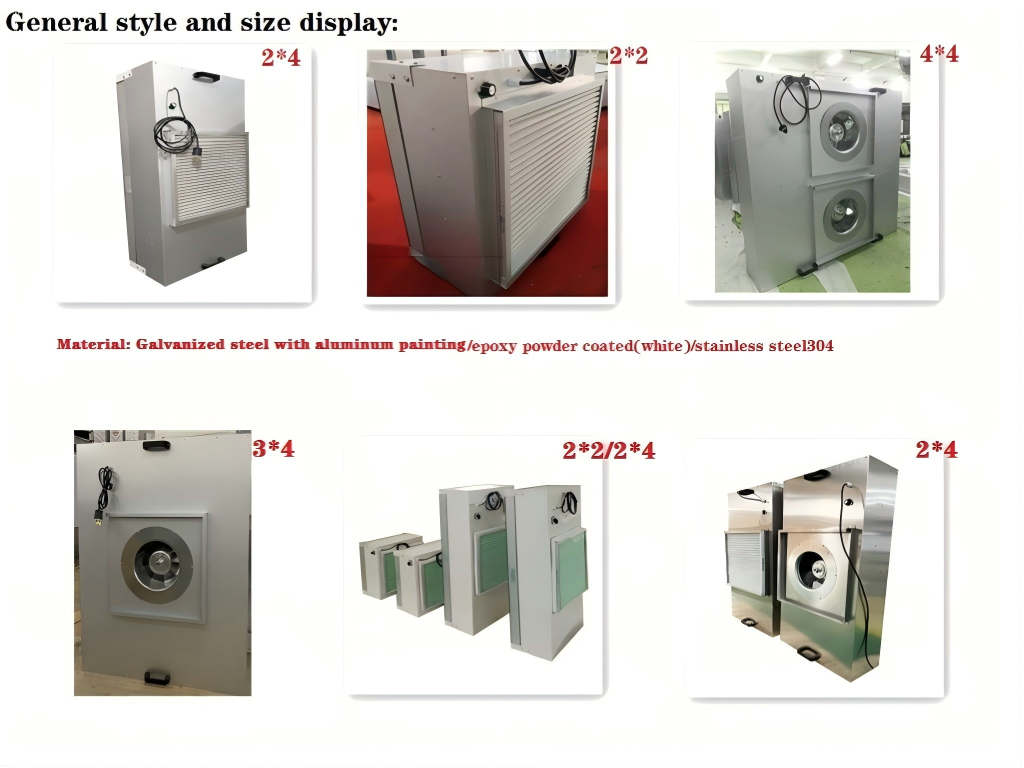

Model		AL-FFU-2*2		AL-FFU-2*4		AL-FFU-3*4		AL-FFU-4*4
Overall size  W * L * H (mm)		575 * 575 * 300		575 * 1175 * 300		875 * 1175 * 300		1175 * 1175 * 380
HEPA filter size   W * L * H (mm)		570 * 570 * 69		570 * 1170 * 69		870 * 1170 * 69		1170 * 1170 * 69
Efficiency		HEPA 0.3μm@≥99.99% OR ULPA 0.12@≥99.9995%
Prefilter - optional		Washable non-woven fabric
Construction		Electro galvanized metal sheet OR stainless steel or high quality aluminum sheet
Air velocity (m/s)		0.35~0.45	0.35~0.45		0.35~0.45		0.35~0.45
Air flow (CMH)		410~513	840~1080		1290~1650		1720~2160
Speed control		3 modes, 5 modes, or induction control
Noise (dB)		48 ~ 50	48 ~ 52		50 ~ 56		52 ~ 58
Consumption	AC	≤ 98	≤ 150		≤ 180		≤200
	DC	≤ 65	≤ 90		≤ 130		≤160
Power		AC single phase 110/220V OR three phase 220/380V 50/60Hz Or DC 220V
Overload protection		Included - terminals or quick coupling are optional
Weight (KG)		28	40		47		55

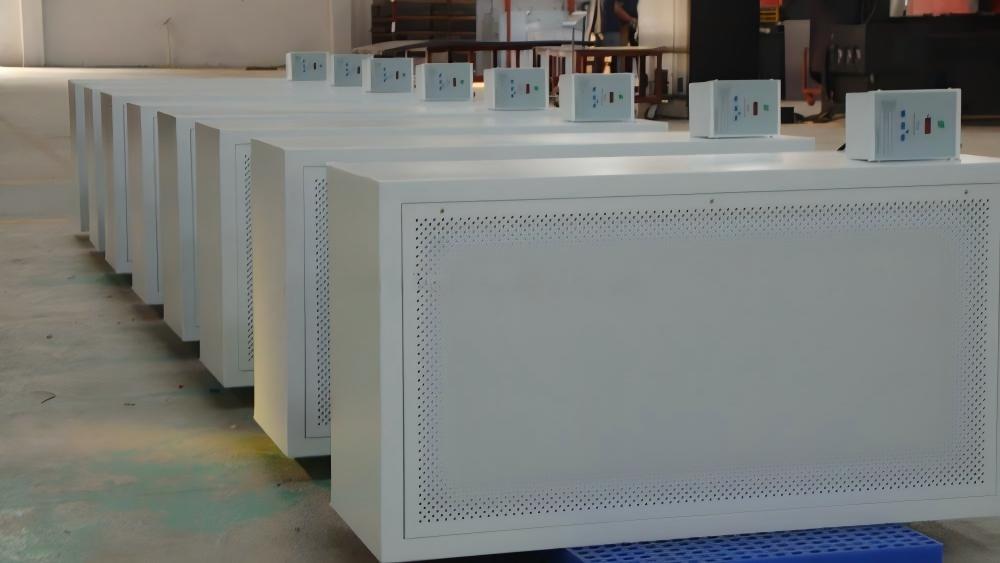

HEPA FILTER INSIDE TYPE

(STAINLESS STEEL)

                  (EPOXY POWDER COATED STEEL MADE)







NOISE REDUCE

Technical Parameters(HEPA FILTER INSIDE TYPE):



Model		AL-LFU-2*2		AL-LFU-2*4		AL-LFU-3*4		FFU-4*4
Overall size  W * L * H (mm)		600 * 600 * 450		600* 1200*450		915 * 1200 * 450		1200 * 1200 * 450
HEPA filter size   W * L * H (mm)		440 * 440 * 69		440*1040*69		755 * 1040 * 69		1040 * 1040 * 69
Efficiency		HEPA 0.3μm@≥99.99% OR ULPA 0.12@≥99.9995%
Prefilter - optional		Washable non-woven fabric
Construction		Electro galvanized metal sheet OR stainless steel or high quality aluminum sheet
Air velocity (m/s)		0.35~0.45	0.35~0.45		0.35~0.45		0.35~0.45
Air flow (CMH)		410~513	840~1080		1290~1650		1720~2160
Speed control		3 modes, 5 modes, or induction control
Noise (dB)		48 ~ 50	48 ~ 52		50 ~ 56		52 ~ 58
Consumption	AC	≤ 98	≤ 150		≤ 180		≤200
	DC	≤ 65	≤ 90		≤ 130		≤160
Power		AC single phase 110/220V OR three phase 220/380V 50/60Hz Or DC 220V
Overload protection		Included - terminals or quick coupling are optional
Weight (KG)		28	40		47		55

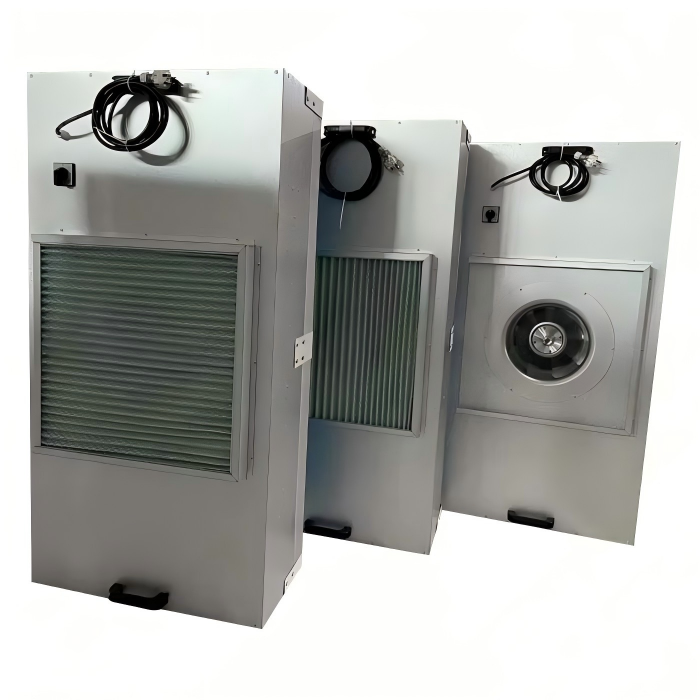

 CUSTOMIZED VARIOUSE TYPE

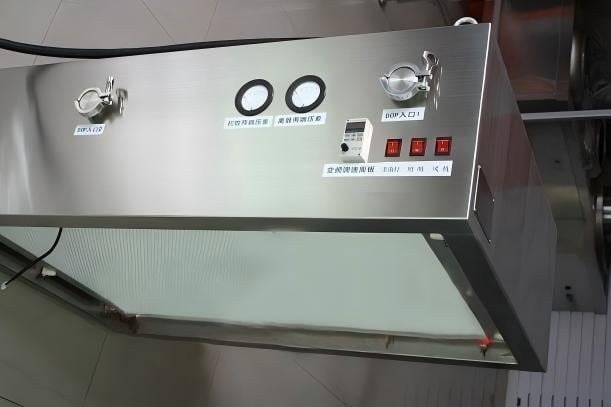

(DOP TESTING FFU)

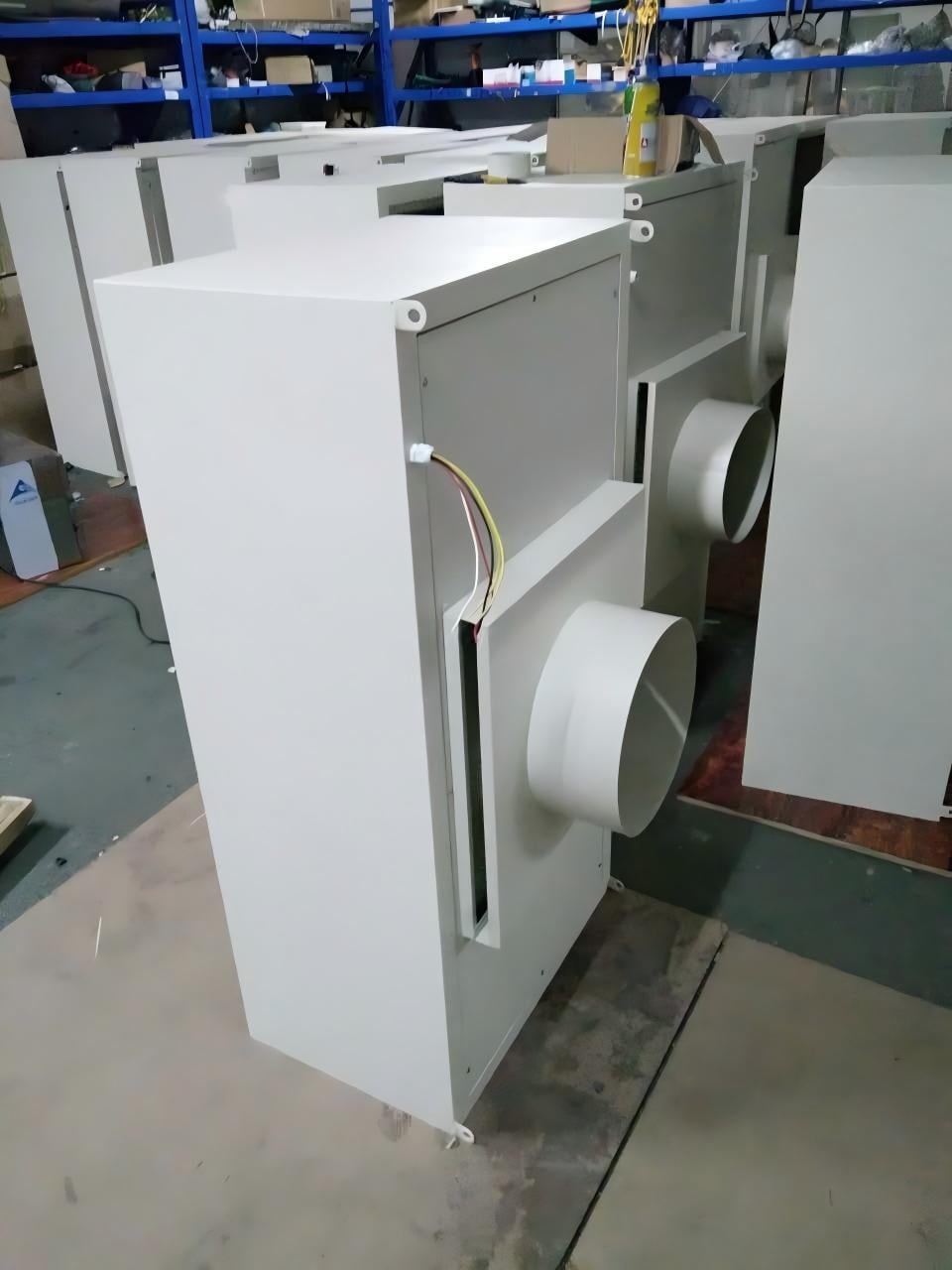

(FFU WITH DUCT)





(EXPLOSION-PROOF)







WELCOME TO CONTACT WITH US FOR YOUR FFU SOLUTIONS

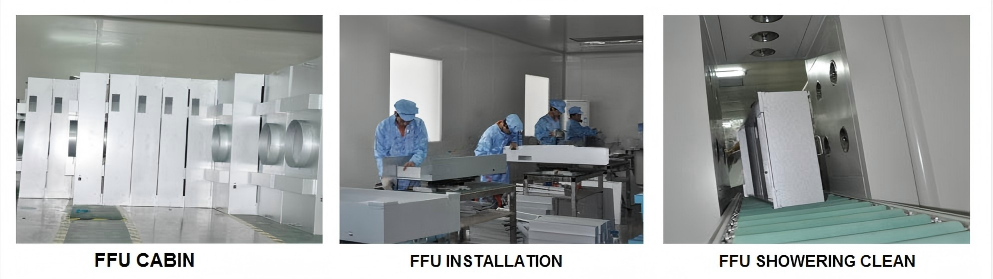

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit

Factory test include:

--appearance testing

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--noise testing



Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures

Additional IO/OQ/GMP document is available upon request

Contact our sales representative for specific warranty details or document request
